Unity6

$549.99
/
★★★★★ (17)
Choose Your Color
Color
The Unity6 is for players who want complete control over their entire pedal board. The Unity6 is unique in the market because it unites your analog, digital and time-based effects. Using the large, bright touchscreen and wireless device editor, you can save and store presets anywhere, anytime. Then, when you're live, you can hit a switch and instantly change your sound.

6 Mono Loops with rearrangeable loop order

Powerful MIDI Control:

  • Send 32 MIDI messages per preset
  • 5 presets per bank, controlled via 4 switches & rotary dial
  • 127 banks, totaling over 22,000 MIDI messages
  • Fire 16 MIDI messages upon activating each bank
  • Assign up to 8 MIDI messages per expression pedal (EXP1 & EXP2), each with programmable min/max values

Multi-Function Press Actions for each switch & rotary dial:

  • Press, Release, Long Press, Long Press Release, Long Press Scroll, Double Tap, Double Tap Hold, Double Tap Hold Release

4 Uni Ports (customizable for different functions):

  • Expression Pedal input
  • TRS MIDI output
  • External Tap Tempo (with four separate tap divisions) for analog pedals
  • JHS Red Remote Control
  • Amp Switching

Wireless Connectivity:

  • Built-in Wi-Fi for programming via any device with a browser (iPhone, Android, PC, Mac, iPad, etc.)
  • Built-in Bluetooth for wirelessly controlling software/hardware and receiving MIDI signals to relay out to your pedalboard
  • Control your board via Ableton Live, Multitracks Playback, Loop Community Prime, etc.

Continuous Feature Updates:

  • Over-the-air firmware updates—no need to access a USB port

Dedicated Scribble Strips per switch, with on/off identifiers & selectable colors

Tap Tempo Control using either the dial or the dedicated tap tempo switch

Built-in Expression Pedal for volume control

Built-in “Post Loop” Clean Boost with programmable gain levels (3dB, 5dB, 7dB, 9dB, & 12dB)

Supports 32 MIDI messages per preset, with 5 presets per bank (4 switches + rotary dial), across 127 banks—totaling over 22,000 MIDI messages.

Ability to wirelessly control software/hardware and relay MIDI commands to your pedalboard (compatible with Ableton Live, Multitracks Playback, Loop Community Prime, etc.).

Dimensions: 7" wide x 5" deep x 3.5" tall.

Power Requirements: 200mA current draw; use a 9V DC negative tip power supply.

Master Your Entire Pedalboard—No MIDI Experience Required

Seamless Control, Simplified for Every Player

Whether you're a seasoned pro or diving into MIDI for the first time, the Unity6 makes pedalboard control effortless. Designed with an intuitive touchscreen and wireless editor, setting up your presets is as simple as tapping a button. Even players who felt overwhelmed by MIDI say the Unity6 made them feel at ease within minutes. From dialing in tones to launching effects instantly, it removes the guesswork and gives you total command—without the learning curve. If you're a guitarist who sings, leads worship, or simply wants to focus on playing instead of pedal-tapping, the Unity6 streamlines every sound so you can stay locked into the moment.

Unite Analog, Digital, and Time-Based Effects Like Never Before

Unmatched Power, Endless Possibilities

The Unity6 isn’t just another MIDI controller—it’s your entire rig’s command center. This pedal seamlessly integrates your analog and digital effects, letting you craft signal chains and tones you’ve only dreamed of. Thanks to its innovative loops, you can even bring non-MIDI pedals under your control, creating a unified, powerful board that responds at the touch of a button. With the ability to handle what would normally take two or three pedals from other brands, the Unity6 gives you unmatched creative freedom. Whether you’re crafting ambient soundscapes, building dynamic worship sets, or dialing in studio-perfect tones, this pedal is built to unlock your full sonic potential.

Seamless Control from Any Device— No Cables & No Internet Required

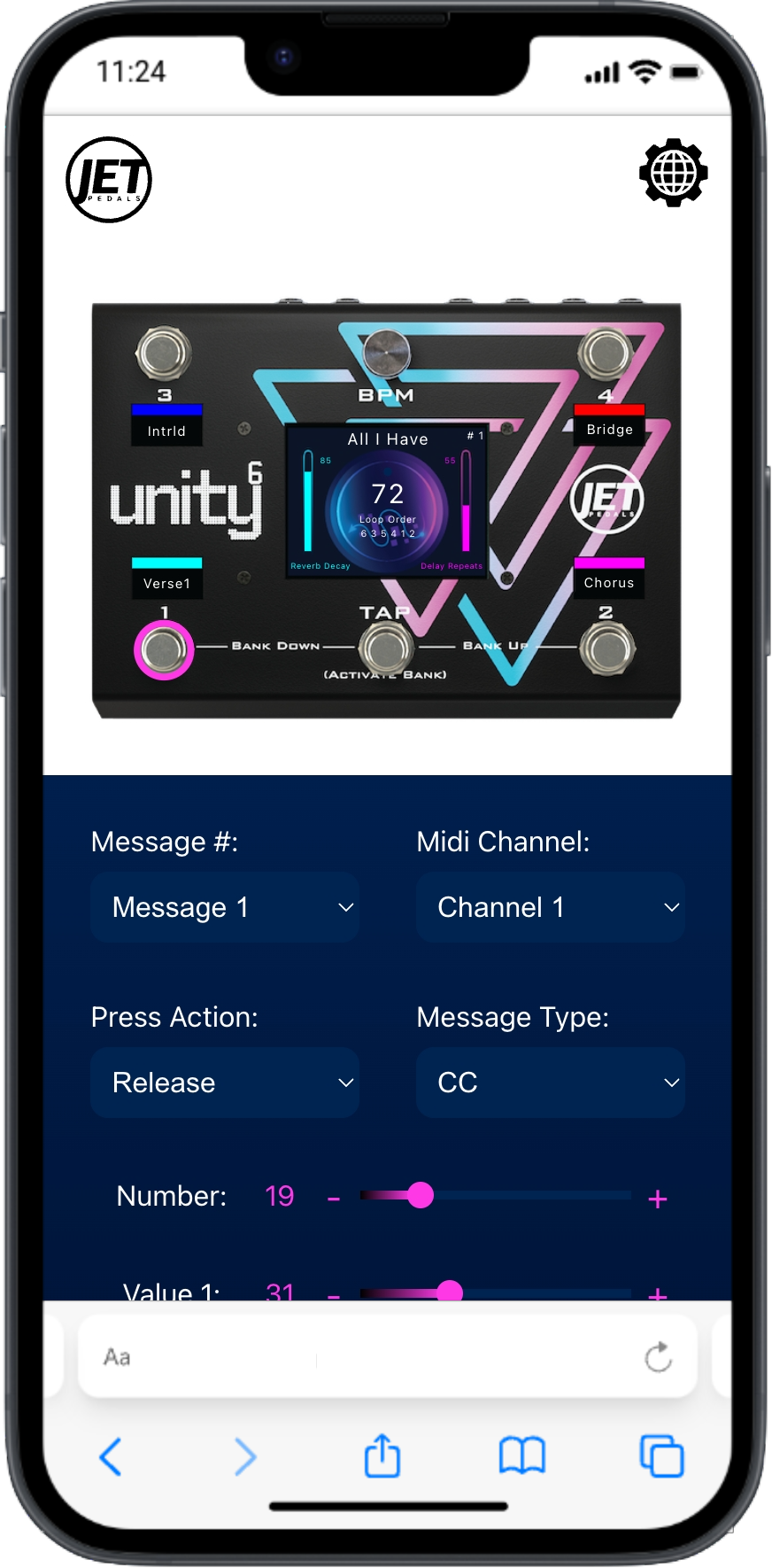

Unity6 Device Editor: Effortless Programming at Your Fingertips

The Unity6 Device Editor transforms the way you control your rig, giving you a seamless, wireless programming experience—no need to remove your pedal from the board, plug in a USB, or connect to the internet. Simply join the Unity6’s built-in WiFi from any web browser on your phone, tablet, or computer, and start programming instantly. The editor mirrors the pedal’s interface, ensuring a smooth, intuitive experience with zero learning curve. Every change you make updates in real time, eliminating the need to manually save. With the Unity6 Device Editor, you get effortless control over your entire setup—anytime, anywhere.

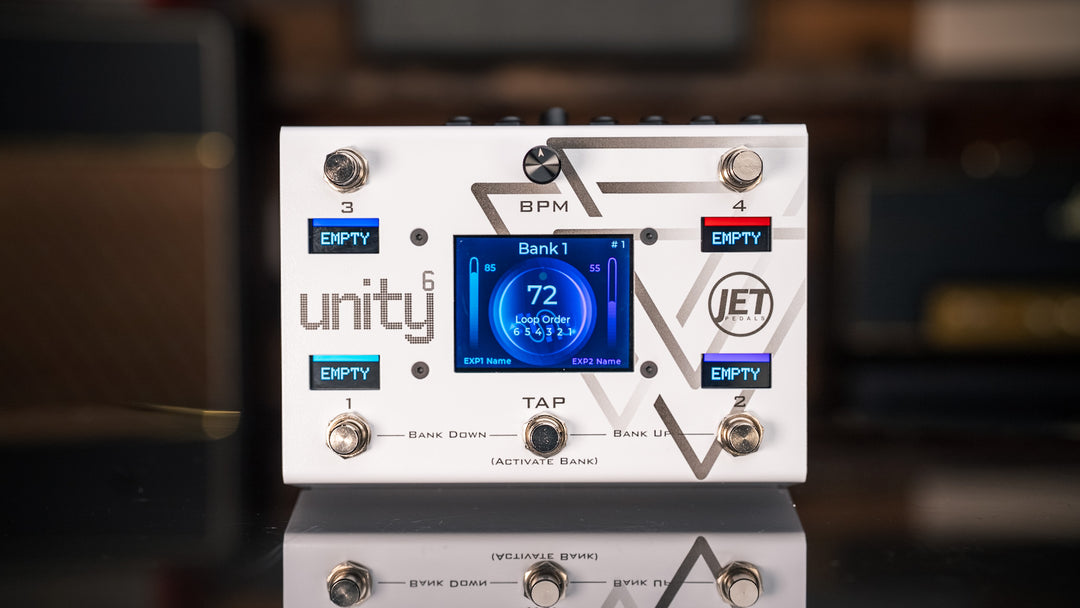

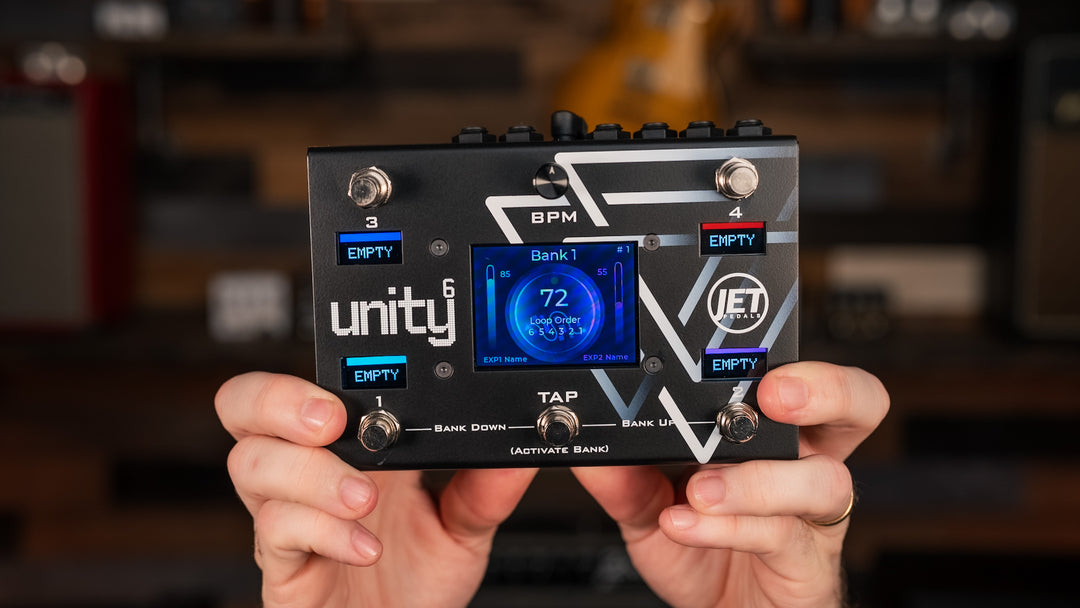

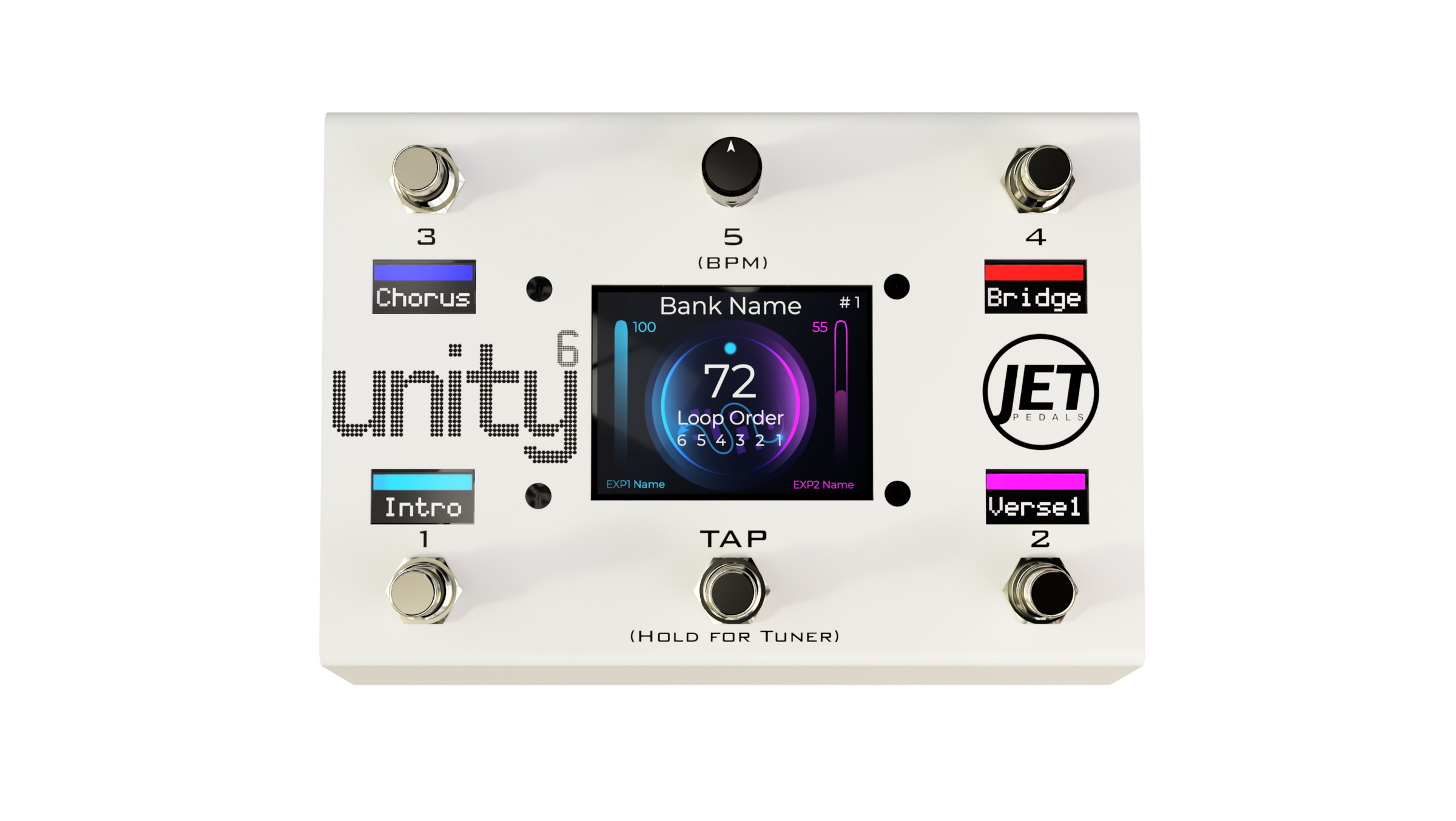

Explore the unity6

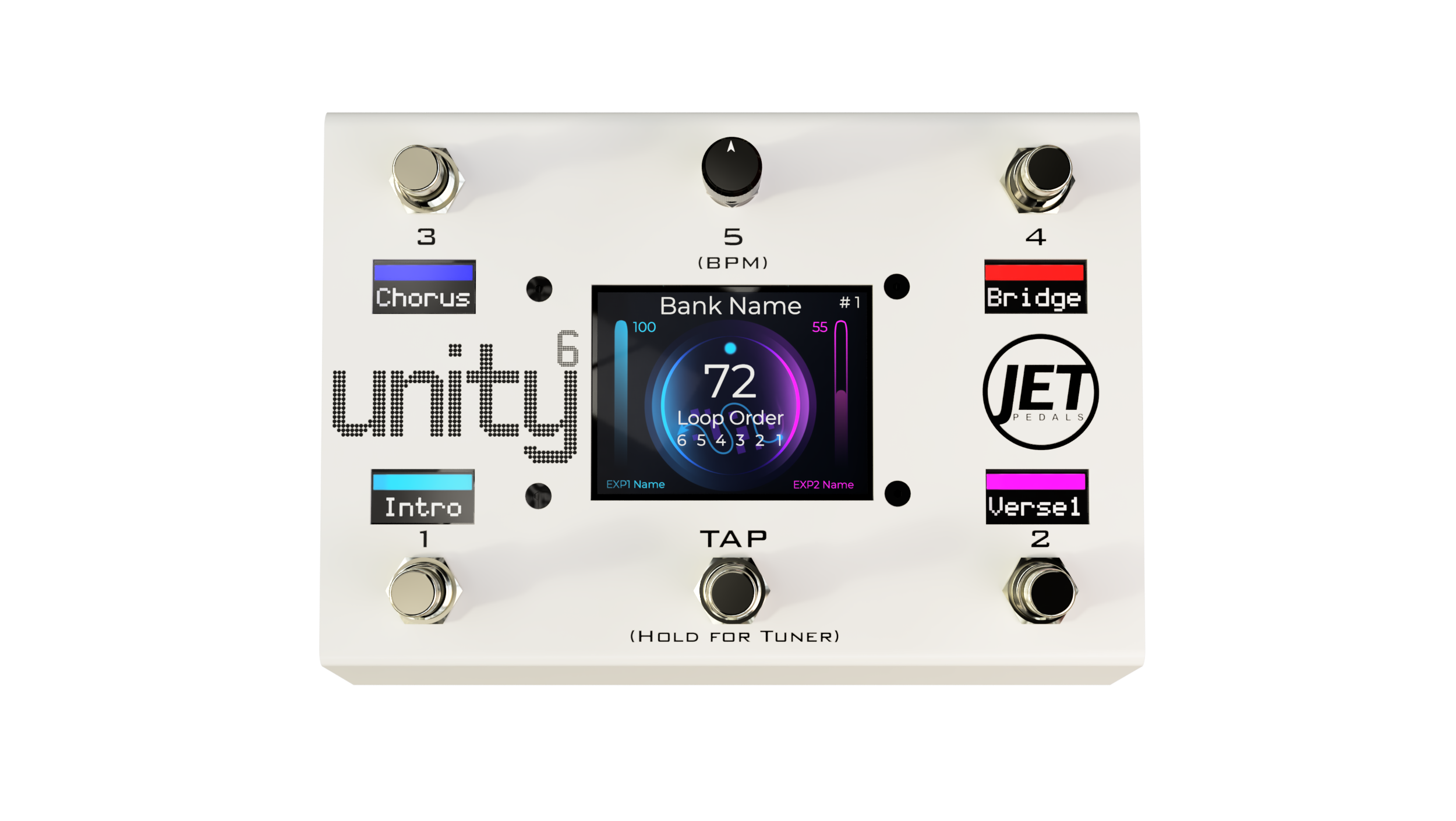

Unity6

Soft click switches

Feature Multi-function press actions, including Press, Release, Long Press, Long Press Release, Long Press Scroll, Double Tap, Double Tap Hold, & Double Tap Hold Release. Instantly fire 32 MIDI messages at the click of a switch.

Rotary Dial

The rotary dial can be used both as a switch and BPM Dial. Used as a switch, it features all the same press actions as the soft-click switches. Used as a dial, it adjusts BPM up or down in increments of 1 BPM, with slow and fast scrolling options.

scribble strips

Dedicated scribble strips per switch, with on/off identifiers and selectable colors.

Programming screen

Use the massive center touchscreen for all of your programming needs. Options include:

Programming Switches - used for assigning MIDI messages to switches/presets

Editing Bank Info - used for naming the preset, setting BPM, naming EXP1 & EXP2, etc.

Customizing Scribble Strips - used for assigning scribble strip info, like default name, toggle name, and color

Tap Switch

Dedicated tap tempo using either the dial or the Tap switch. When scrolling up/down Banks, hold the Tap switch to activate the queue'd up Bank.

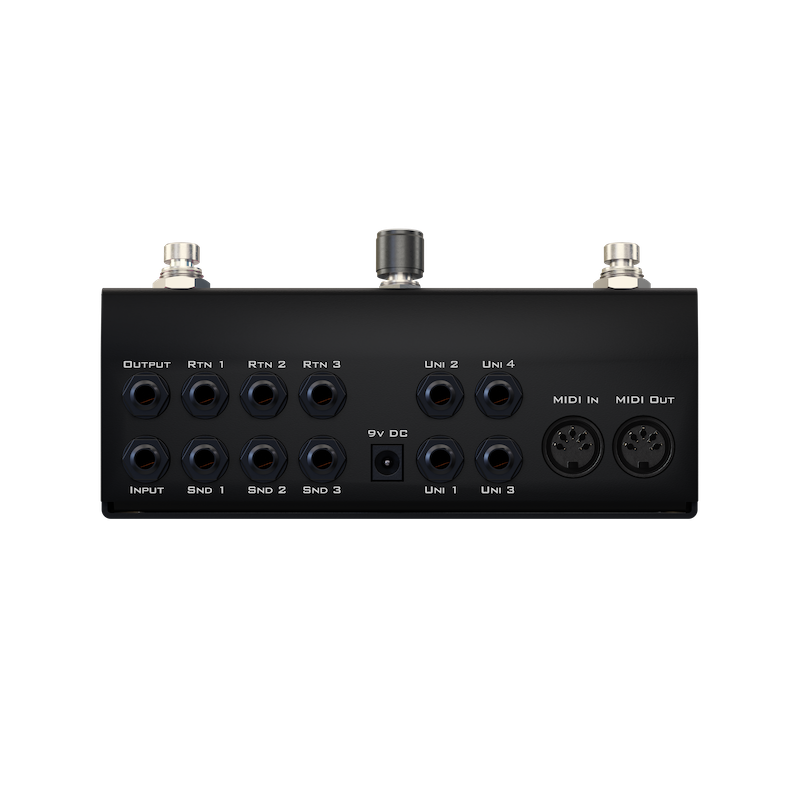

Input/output

The Unity6 has mono input and output jacks. Connect the signal from your guitar into the Input. Connect the Output to either your wet effects or into your amp/modeler.

Mono loops

The Unity6 has 3 TRS Send and Return loops. Using insert cables, the Unity6 can have 6 individual mono loops that are routed in series. Use standard TS patch cables for 3 loops or less.

Each loop can be re-arranged on a per bank basis, meaning you can set one loop order in bank 1 and a totally different loop order in banks 2, 3, 4, etc.

Each loop can be programmed to turn on/off individually or any combination of loops can be on/off at any given time.

Uniports

There are 4 UniPorts on the Unity6 and each of them can be assigned to provide various features for controlling external pedals or expanding the features of the Unity6. Features include using expression pedals, sending MIDI via TRS, JHS Red Remote and amp switching, and controlling analog tap tempo w/ various subdivisions.

5-Pin MIDI Ports

Send and receive MIDI via 5-pin MIDI cables. MIDI In can be configured in Global Settings for input only or MIDI Thru.

word on the street

Unity6 Feature Comparison

How the Unity6 compares to other popular products

Unity6

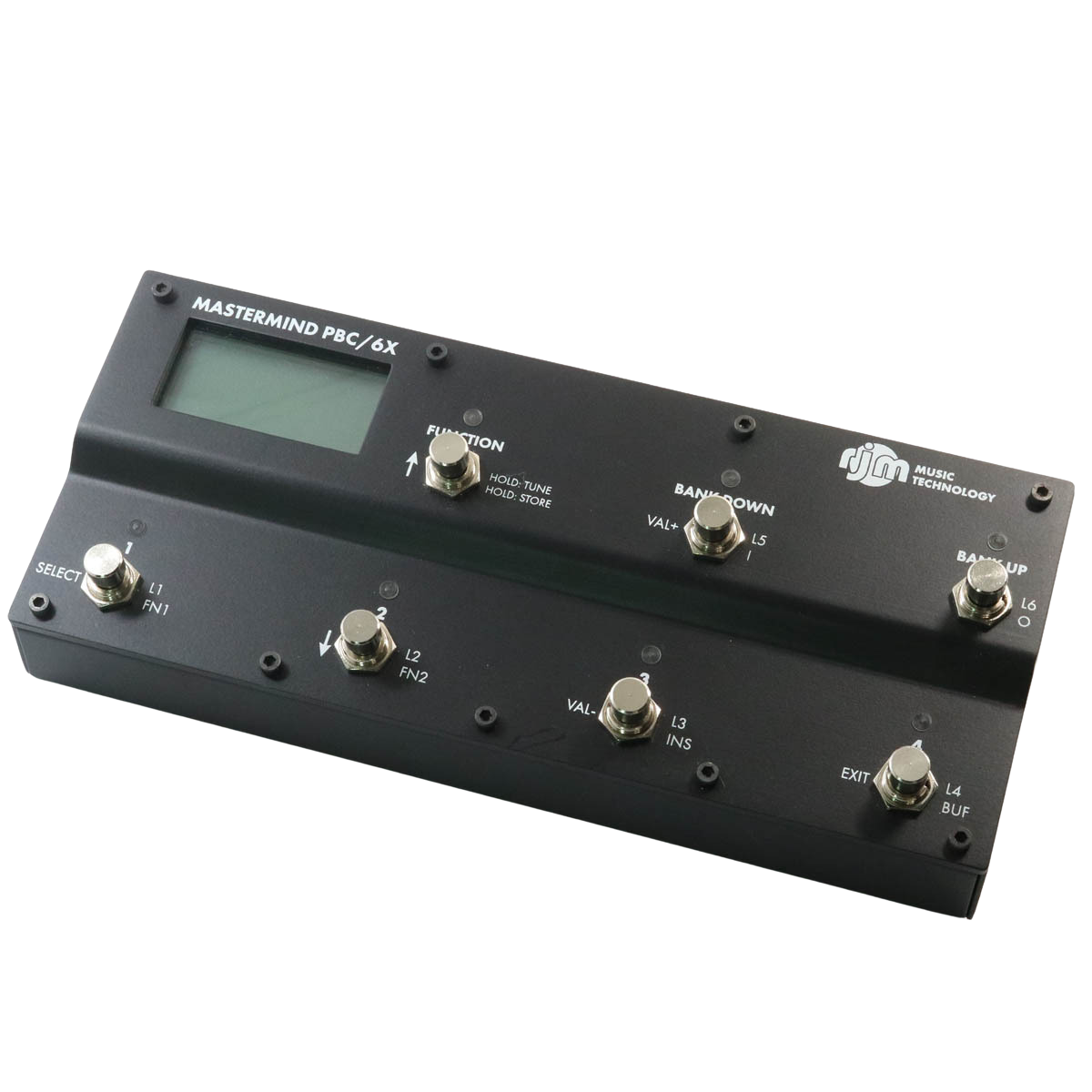

RJM PBC6X

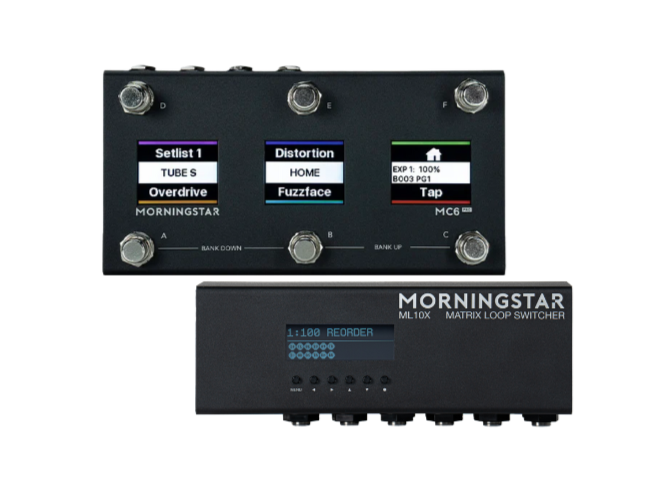

Morningstar MC6Pro + ML10X

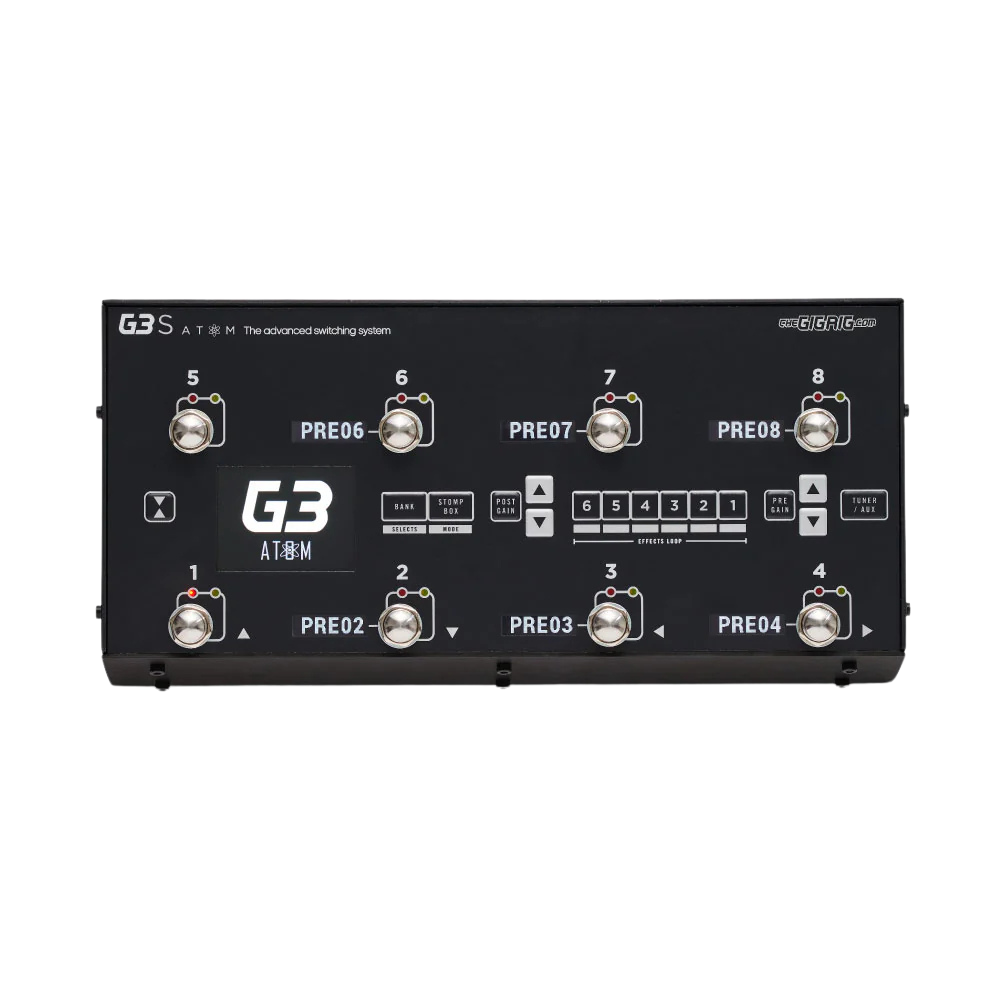

GigRig G3S Atom

Retail Price

$549.99

$699.99

$749.98

$1,299.00

Robust MIDI Control (CC, PC, Note, Expression, etc.)

Limited to PC Only

MIDI Messages per Preset

32

16

32

15

Re-Arrangeable Loop Order

Number of Analog Loops

6

6

5 Stereo or 10 Mono

6

Programmable Scribble Strips

Group MIDI Messages to Different Press Actions

Utility Ports to Control External Pedals (MIDI, Tap Tempo, etc.)

Multiple Expression Pedal Inputs

¼" TRS MIDI Outputs

Touchscreen Programming

Built-In WiFi for Wireless Programming

Built-In Bluetooth for Controlling DAW’s & Software

Receive Bluetooth MIDI for Remote Control of Your Complete Pedalboard

User Manual

Explore the Unity6 User Manual
