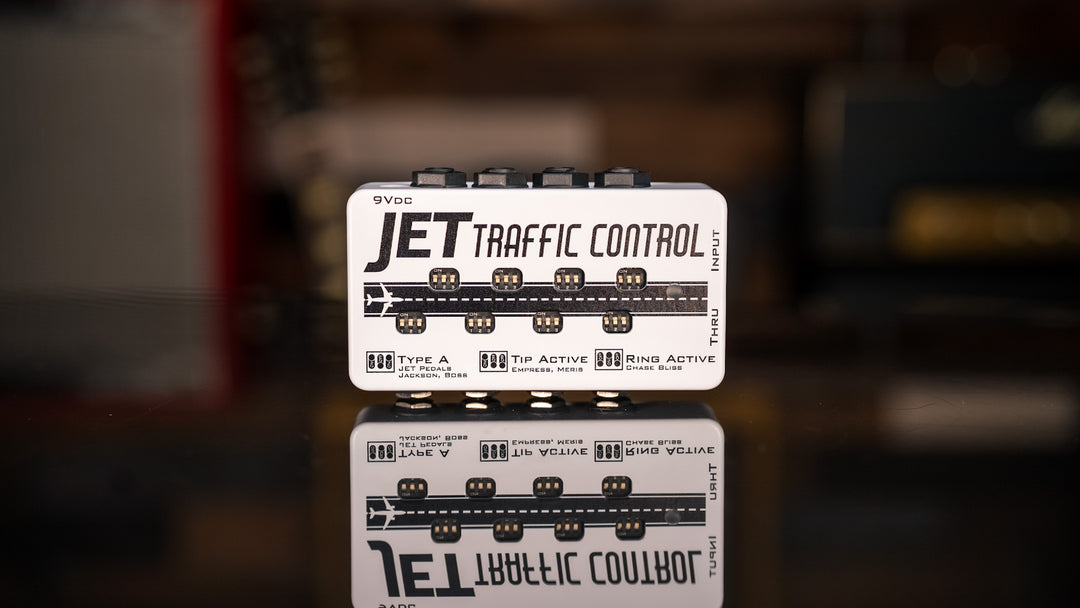

The Traffic Control is an 8-port 1/4" TRS MIDI hub, used to split your 5-Pin MIDI signal out to 8 different TRS MIDI pedals. Each port can be configured to send MIDI on the Tip, Ring, or MIDI Type A. So no matter who makes a MIDI pedal with ¼" inputs, the Traffic Control can handle it.
- 5-Pin MIDI Input and Output/Thru connections

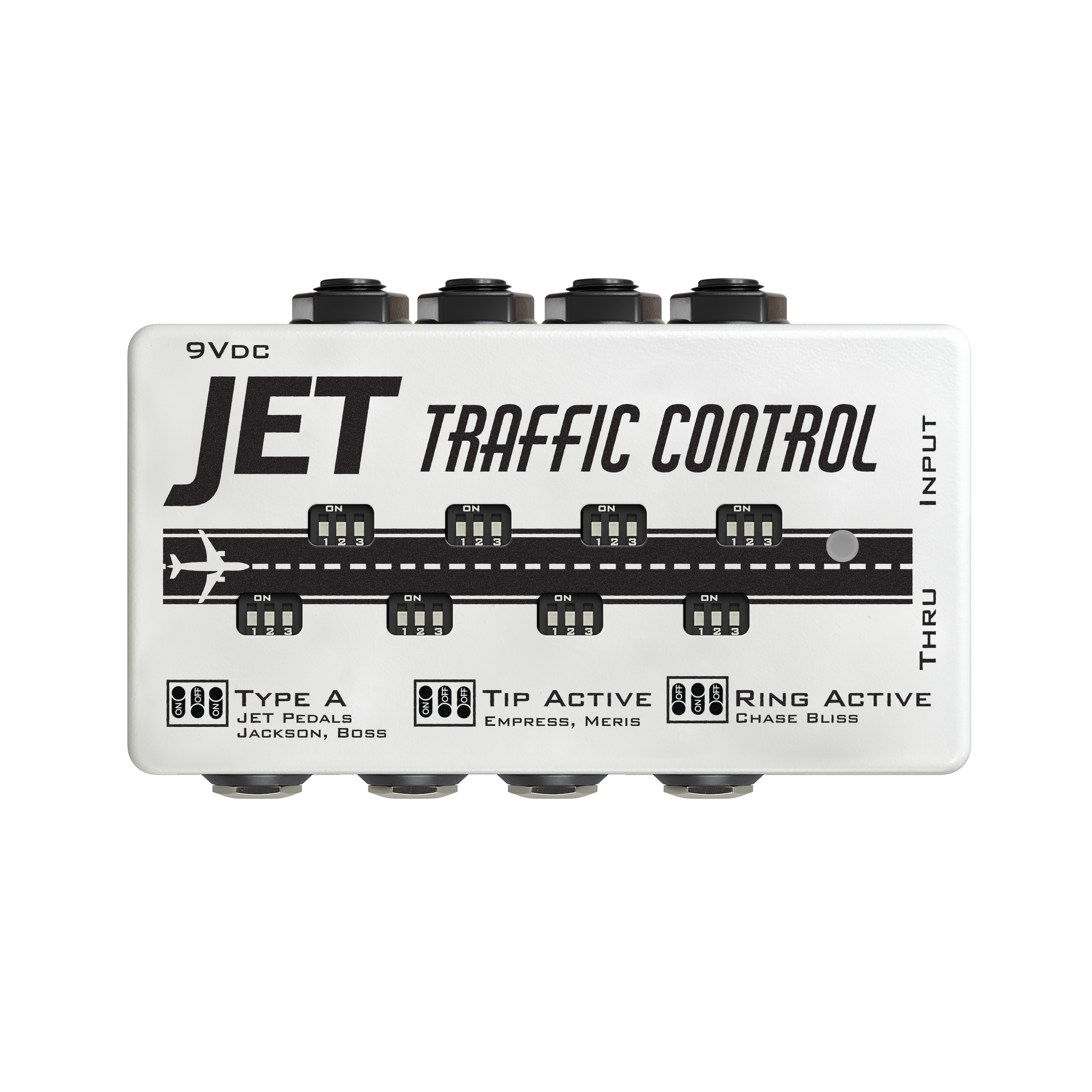

- (8) - 1/4" TRS Outputs, each port is configurable for MIDI on Tip, Ring, or Type A
- Power via 9v (negative tip) power supply (pwr supply not included)
- Current Draw: 100mA
- Enclosure Dimensions: 4.39" x 2.37" x 1.07"
