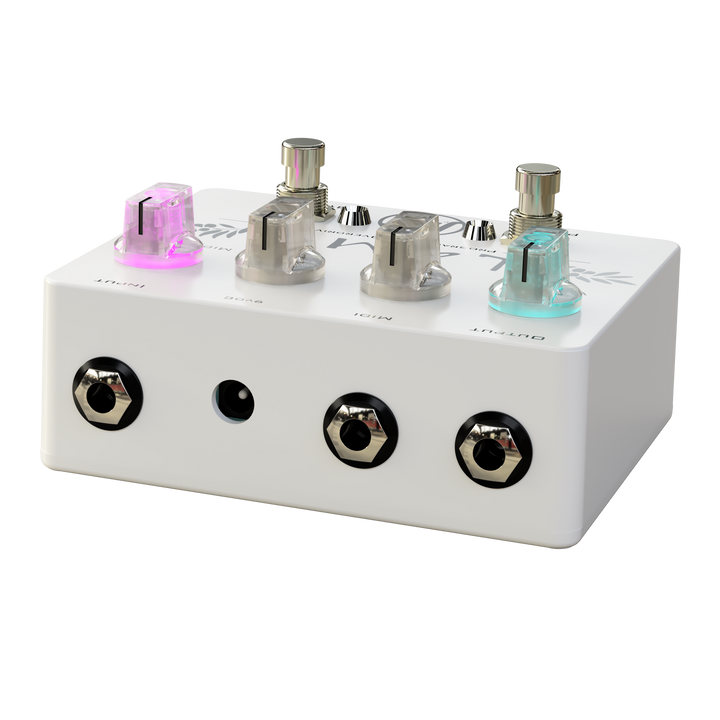

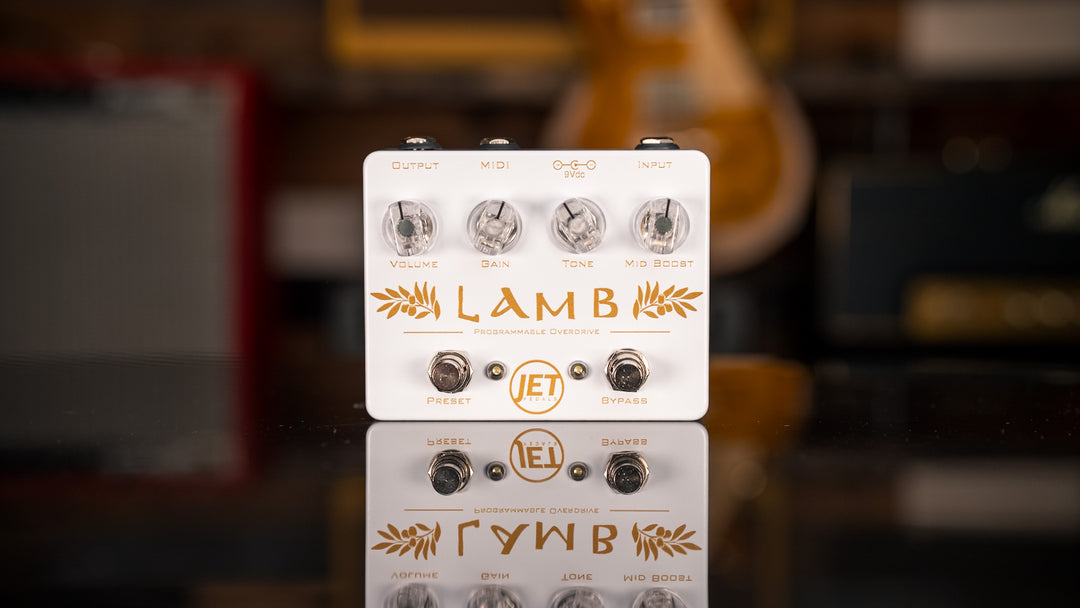

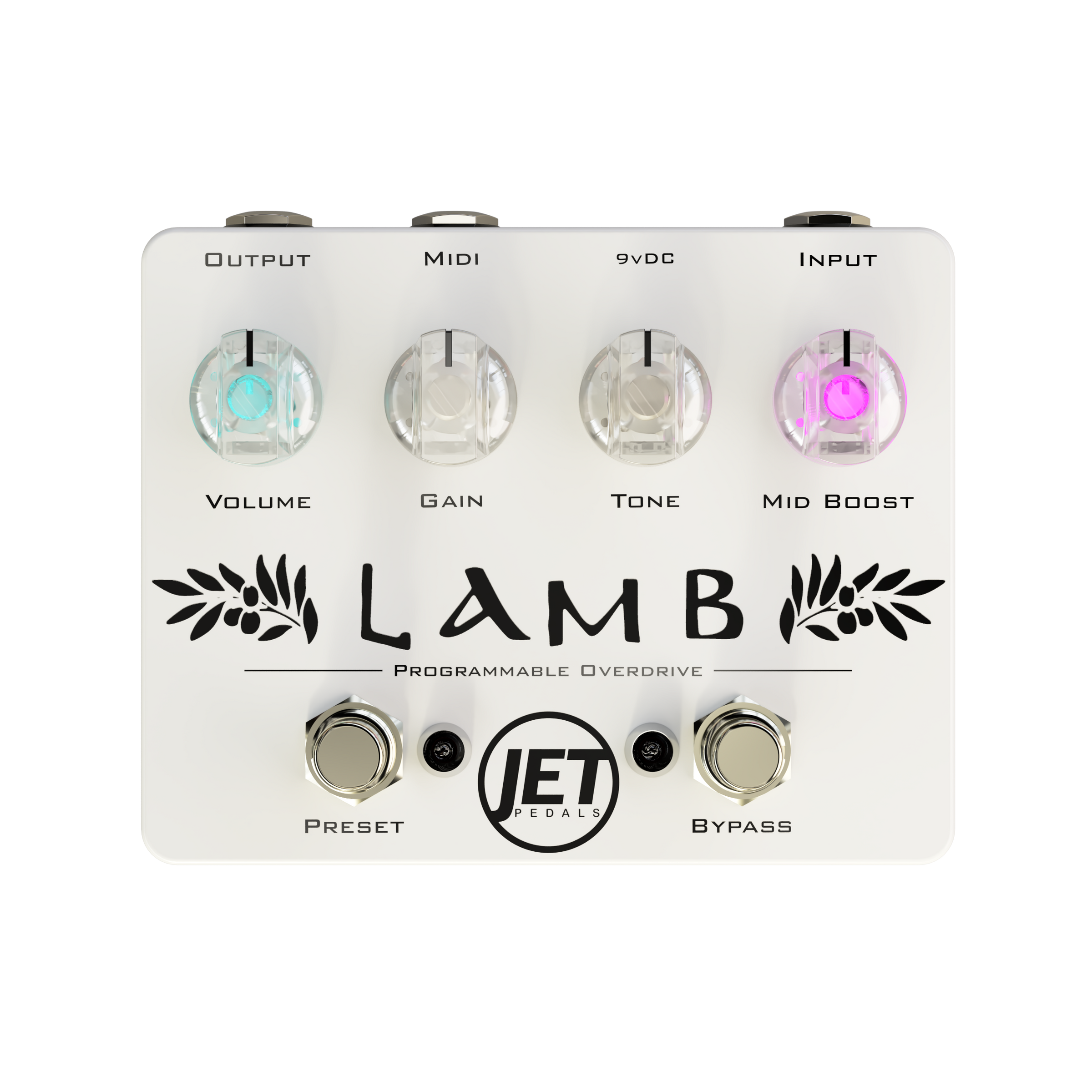

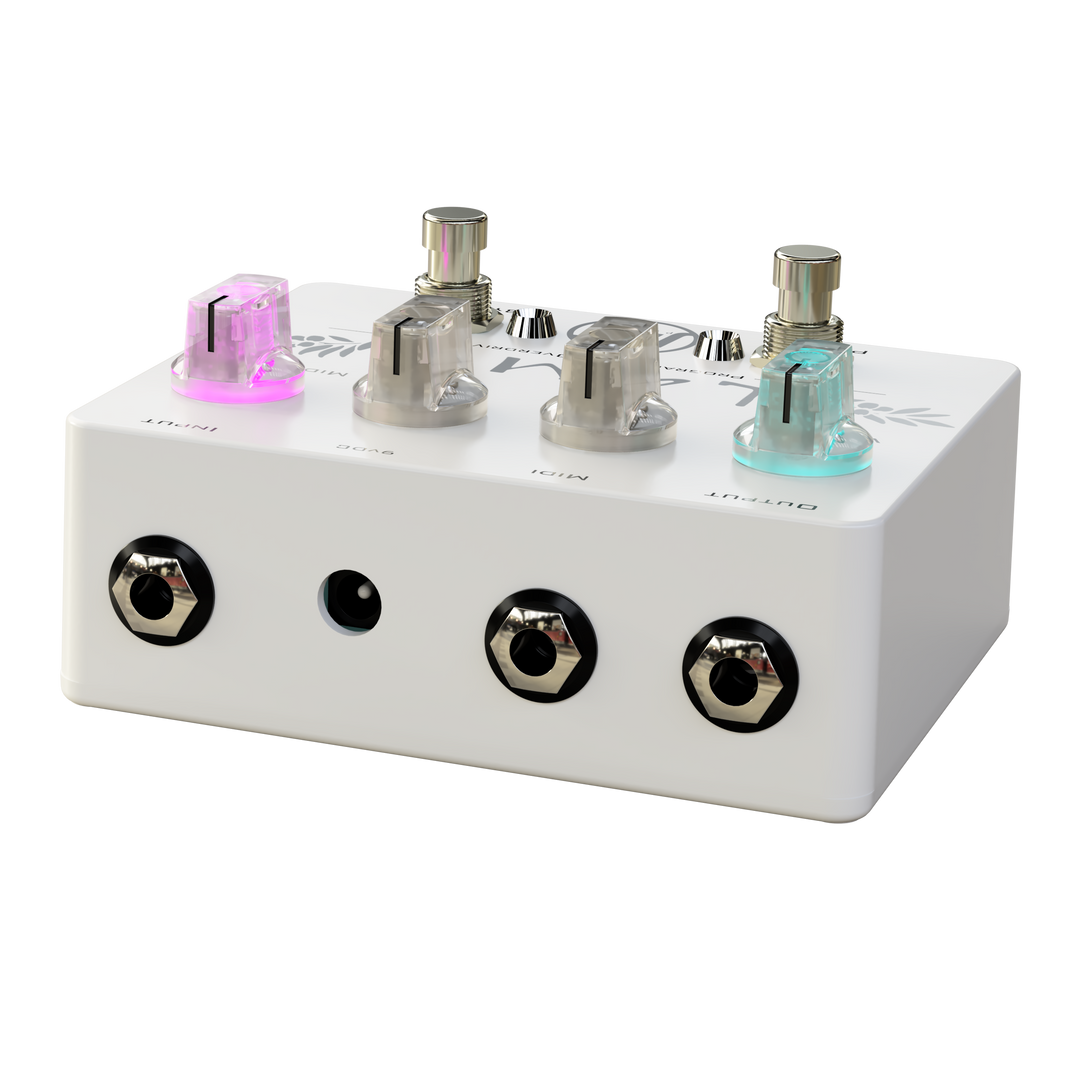

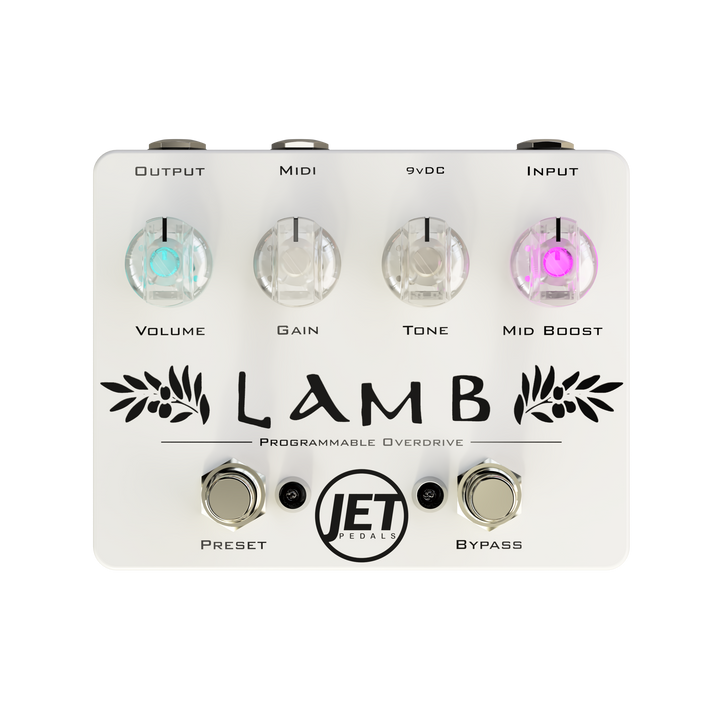

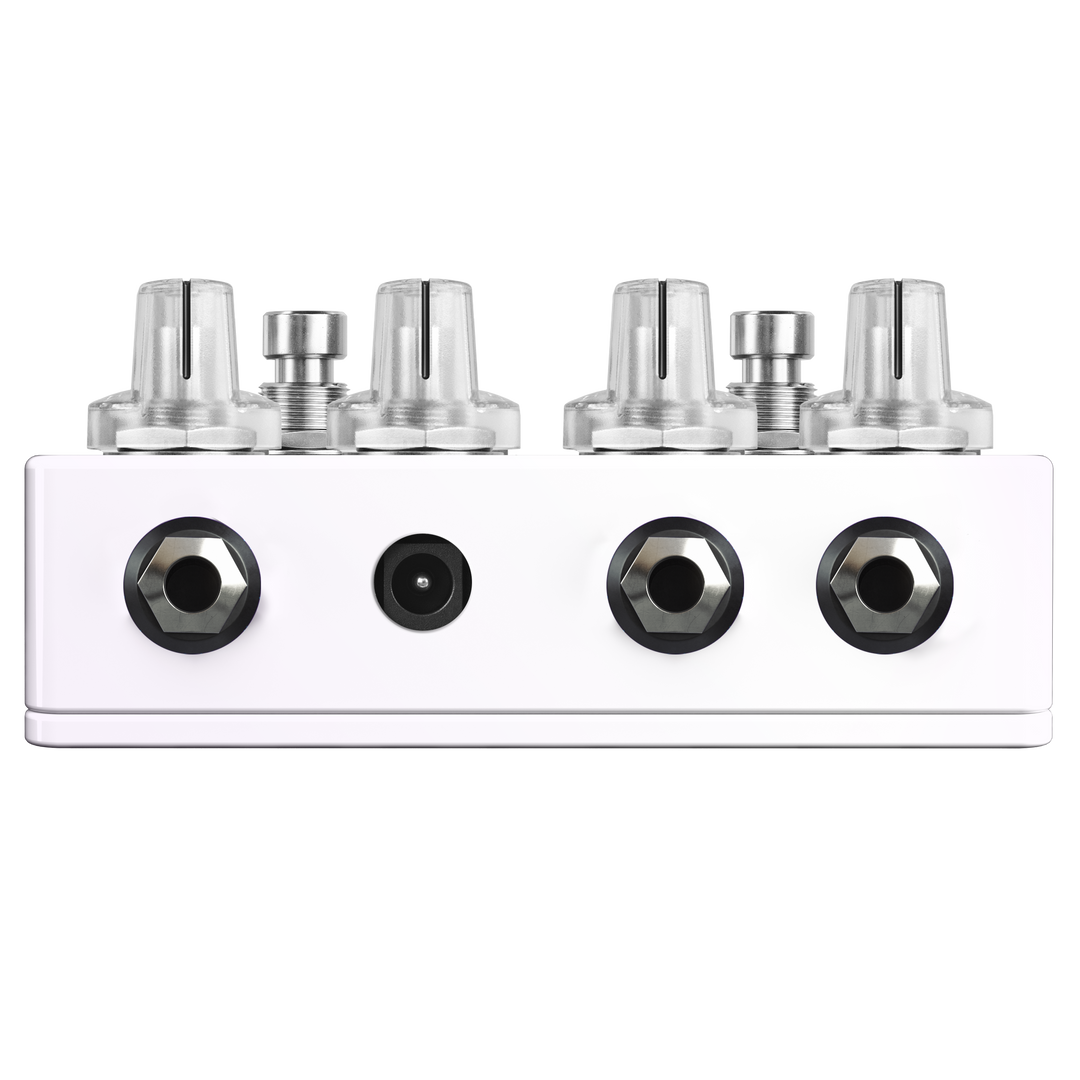

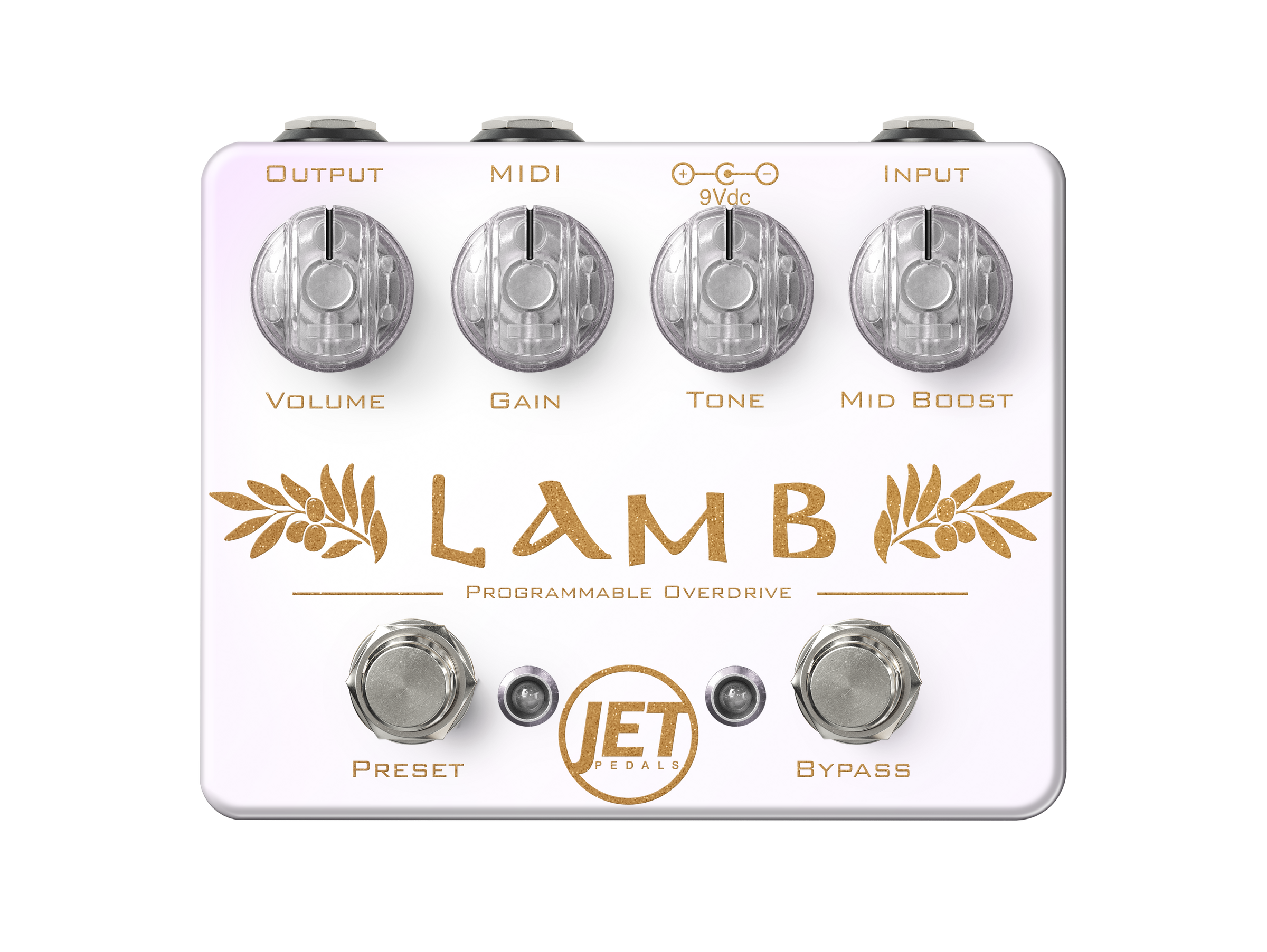

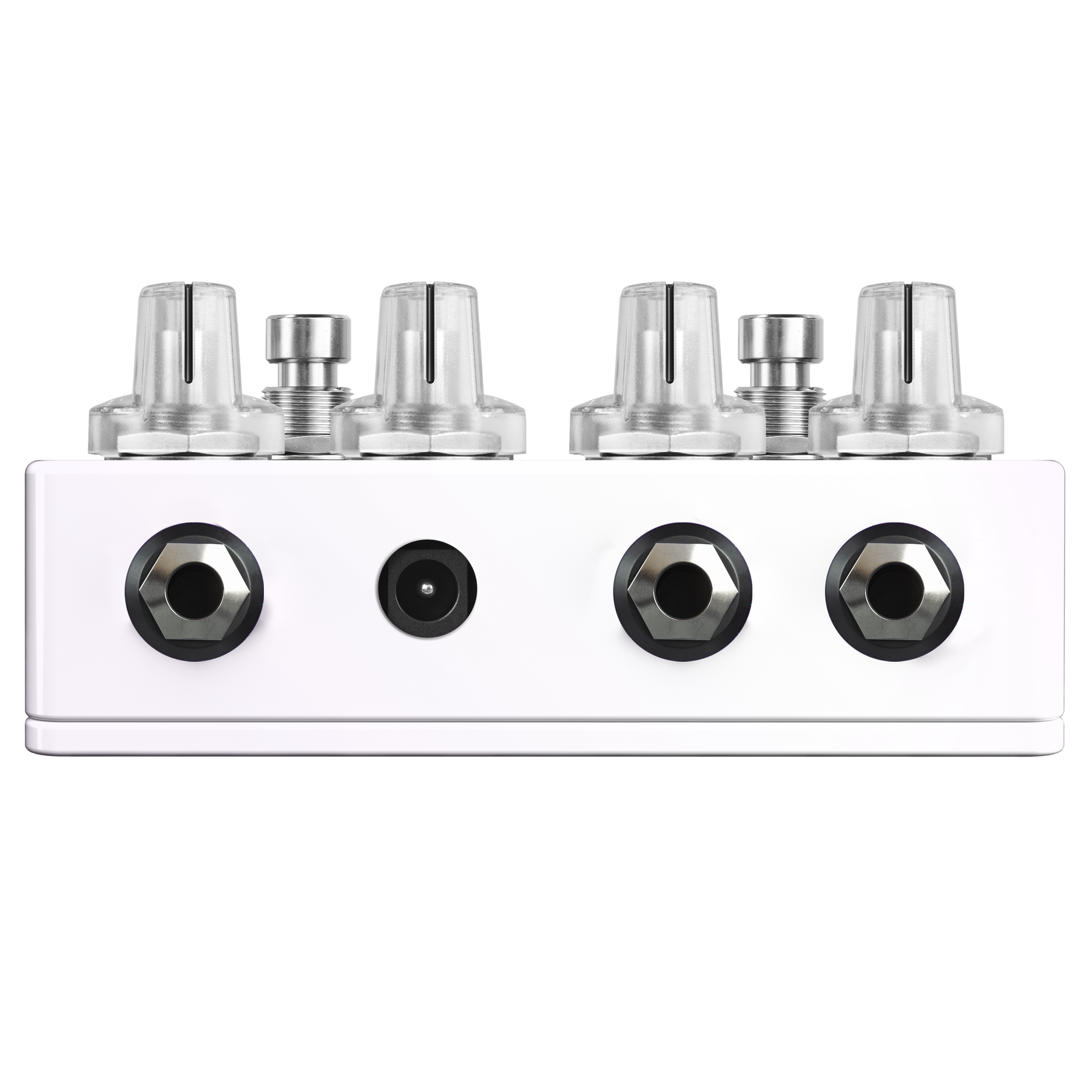

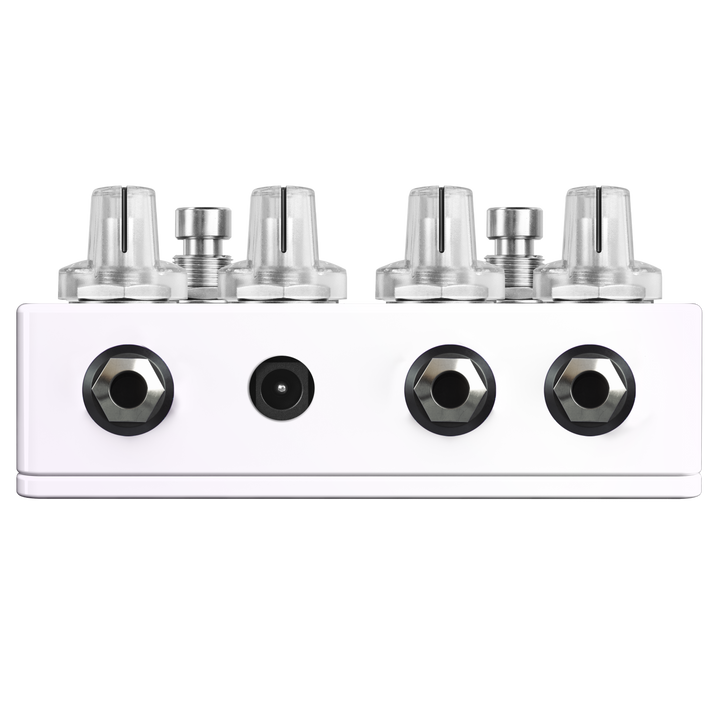

Lamb Overdrive
100% All Analog Signal Path
Full MIDI Control over every knob, switch, and feature
3 Selectable Overdrive Circuits:

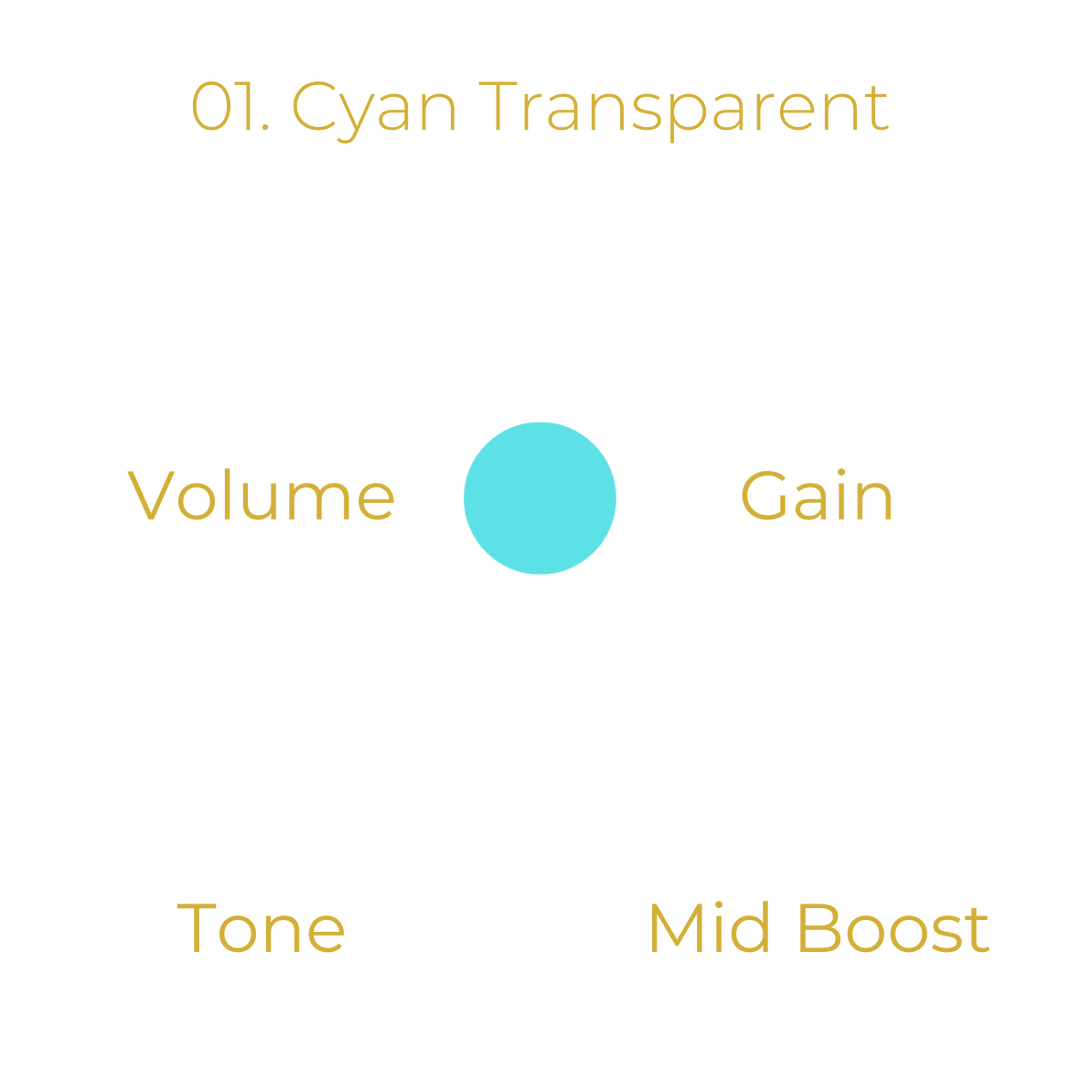

- Cyan - Quad silicone diodes

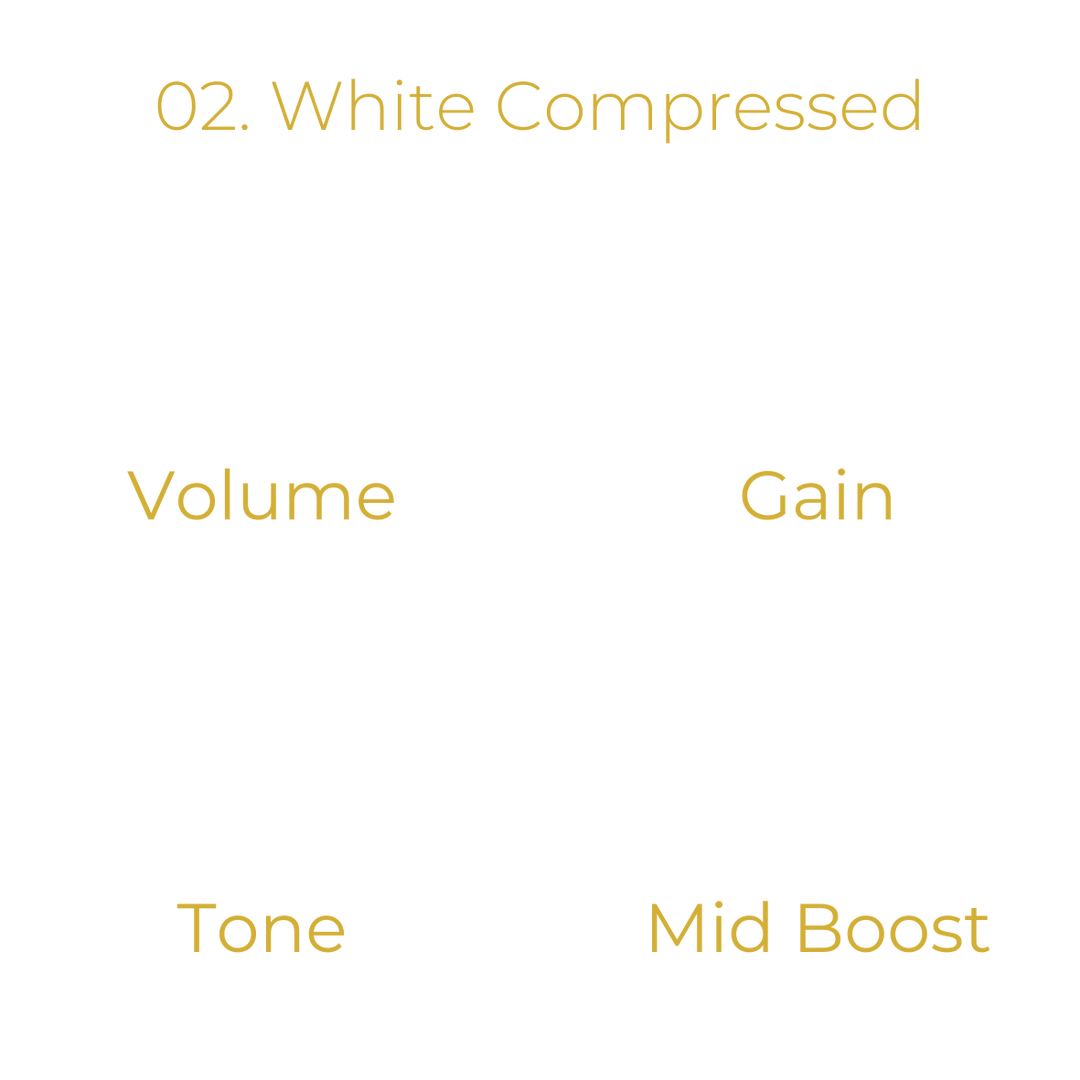

- White - Dual silicone diodes

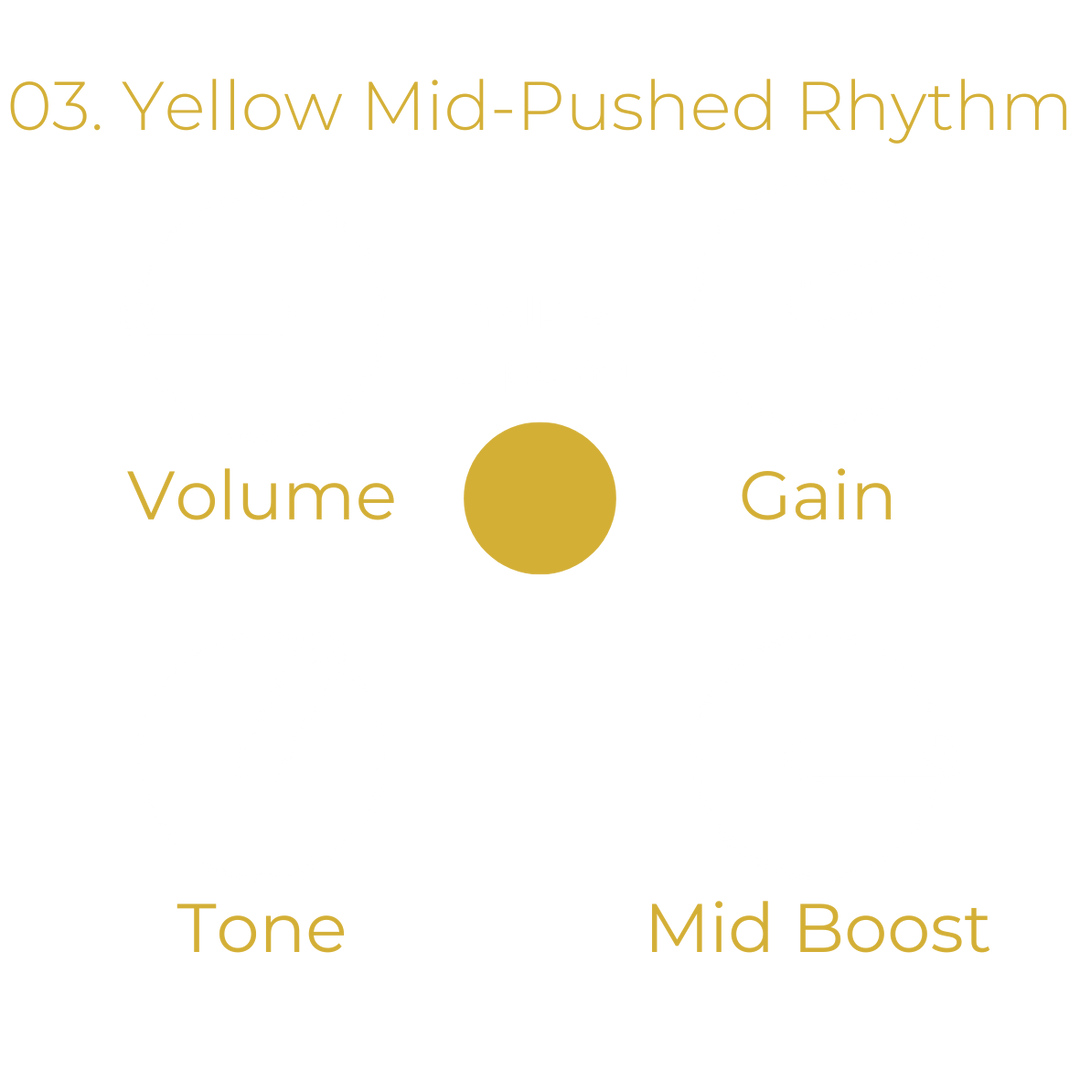

- Yellow - Asymmetrical silicone diodes
3 Selectable Onboard Presets
- Knobs are inactive in preset mode
100 Onboard Presets with a MIDI controller
- Any circuit can be saved to any preset location
Live Mode & Preset Mode
- Live Mode: Knobs always active
- Preset Mode: Knobs inactive
Quick access between Live Mode & Presets

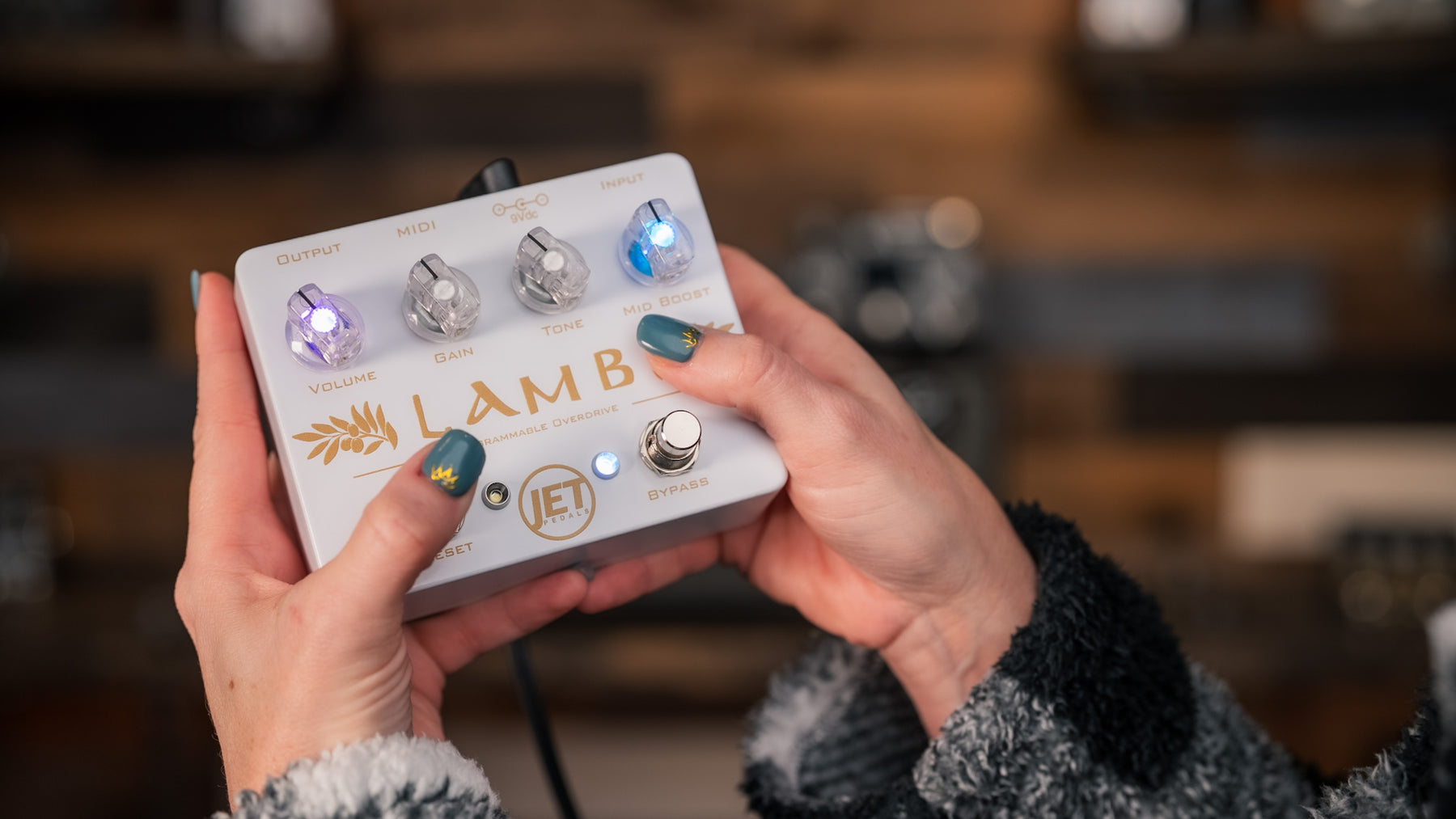

Multi-Colored LEDs
- Indicate the status of each preset & overdrive circuit
Double Tap Preset Switch for Instant Lead Boost
Soft Click Bypass Switches
Internal 18V Charge Pump
Converts a standard 9V power supply to 18V
Provides maximum headroom and responsive touch dynamics
Power Requirements:
9V DC (Negative Tip) power supply (not included)
Requires 200mA or larger power supply (lower power may cause performance issues)
Dimensions:
4.7 in x 3.7 in x 1.66 in (119 mm x 94 mm x 42 mm)
Op-Amp Based Overdrive Circuit with soft clipping diodes inside the feedback loop
Tone inspired by classic circuits like:
Marshall BluesBreaker
Analog Man King of Tone
JHS Morning Glory
High Headroom & Dynamic Response due to internal 18V conversion
Three Selectable Overdrive Circuits:
Custom-voiced drive tones with versatile gain ranges
Lead Boost Mode for instant gain increase with a double tap
